Maintenance in underground power systems presents a high-stakes reality for electrical crews. Workers frequently operate in highly confined spaces. They face constant moisture and extreme fault current risks daily. Accidental energization in underground trenches or vaults can turn fatal instantly without reliable temporary grounding. Induced voltages also build up dangerously across parallel cable runs. These invisible threats demand robust protective measures. To safely discharge systems, crews depend on properly specified portable earth equipment. These tools protect personnel during critical installation or repair tasks. You will learn how underground environments dictate specific grounding requirements. We will explore core components, key evaluation criteria, and practical deployment realities. Understanding these factors ensures you equip your teams safely and effectively.
Key Takeaways
Underground environments require specific earthing equipment kits optimized for confined spaces and high-humidity conditions.
Core components include specialized line-end clamps, flexible clear-sheathed copper cables, and compact insulating poles.
Procurement evaluation must center on fault current ratings (e.g., kA/1s), compliance with IEC 61230 or ASTM F855, and mechanical durability.
Mismatched clamp profiles and degraded cables are the leading causes of equipment failure during a short-circuit event.
The Specific Safety Demands of Underground Power Systems
Underground power networks create unique operational hazards. Utility workers do not have the luxury of open air or dry conditions. They must navigate tight quarters while managing lethal energy potentials. Understanding these environmental constraints is the first step in selecting appropriate safety gear.
Confined space limitations severely restrict worker movement. Underground vaults and narrow trenches offer very little clearance. Traditional overhead grounding tools are often too long and cumbersome. Standard hot sticks will frequently strike the ceiling or walls of a vault. You need compact, highly ergonomic safety tools. Shortened or sectional poles allow operators to apply grounds safely without awkward maneuvering.
Environmental stressors constantly attack the integrity of safety tools. Subterranean vaults often suffer from poor ventilation, standing water, and high ambient moisture. These damp conditions accelerate corrosion on bare metal components. They also degrade synthetic insulation materials over time. If moisture penetrates a cable connection, oxidation dramatically increases electrical resistance. This unseen damage can cause catastrophic failure during a fault event.
Induced voltages present a persistent, invisible danger. Parallel underground cable runs often experience capacitive and inductive coupling. Even when a circuit is completely isolated from the main supply, it can still harbor lethal voltage. The adjacent live cables induce this energy into the de-energized line. Robust temporary grounding bleeds off this trapped energy. You must apply these grounds before any physical work begins to protect your crew.

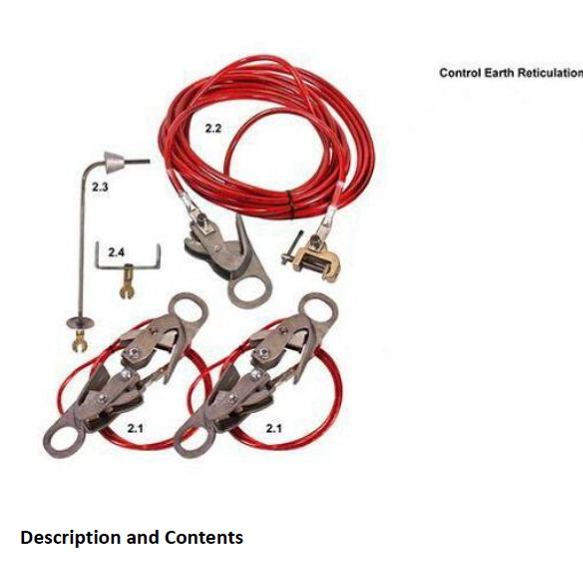

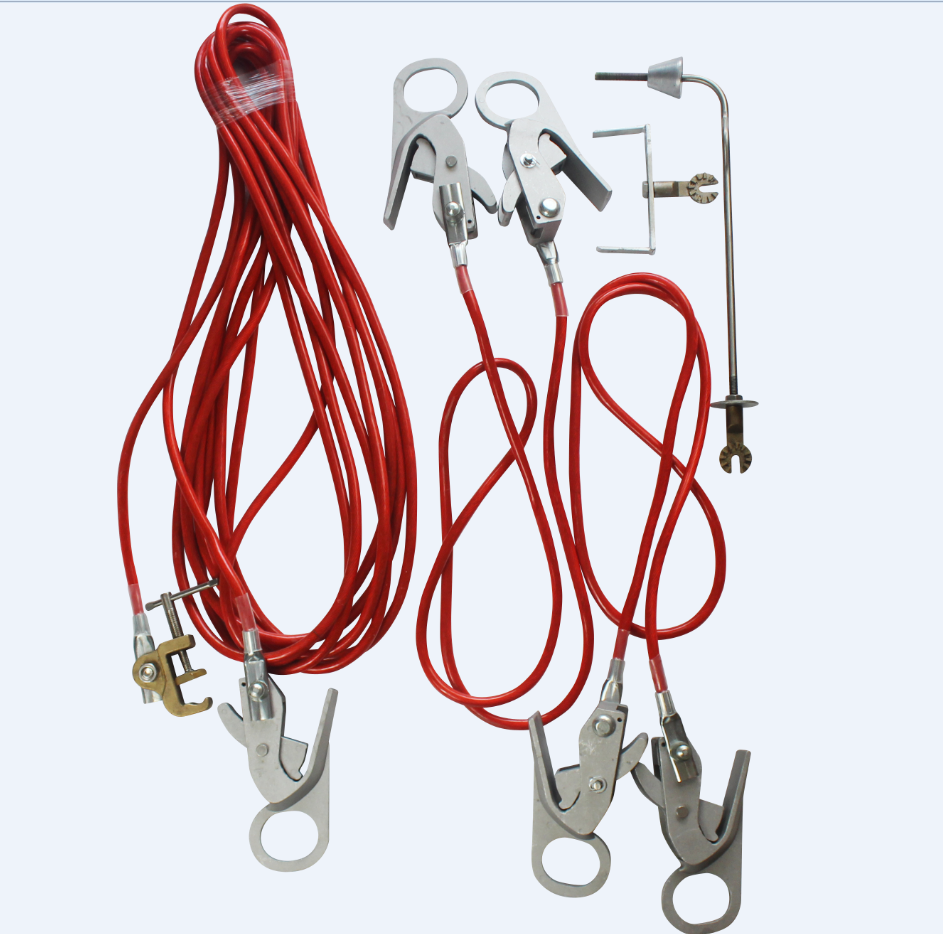

Core Components of Underground Earthing Equipment Kits
A reliable temporary grounding setup is never a random assortment of parts. It functions as an engineered system. Each component must perform flawlessly under immense electrical stress. Specifying the right earthing equipment kits involves understanding three core elements.
Specialized Clamps (Line and Earth End)
The industry is rapidly phasing out generic, one-size-fits-all grounding clamps. Generic profiles often fail to secure a tight grip on modern switchgear terminals. You must use phase-specific clamps designed for your exact network infrastructure. Common profiles include ball stud clamps, flat bar clamps, and specialized switchgear attachments. A perfectly matched clamp ensures a low-resistance connection. If the connection resistance is too high, the fault current will generate explosive heat. This thermal stress can physically blow the clamp off the terminal.
Flexible Copper Grounding Cables
The grounding cable carries the massive brunt of a short-circuit fault. Specifications mandate high-flexibility, fine-stranded copper. Stiff cables are difficult to route inside cramped underground cabinets. Fine stranding allows the cable to bend easily around obstacles. Furthermore, transparent sheathing is strictly mandatory. Manufacturers typically use UV- and moisture-resistant silicone or clear PVC. Transparent jackets allow visual inspection of the copper core. Operators can easily spot broken strands or dark oxidation spots before deploying the kit.
Compact and Sectional Operating Poles
Applying the clamps requires insulated operating poles. Because underground clearance is poor, standard-length sticks are unusable. Crews rely on compact, sectional fiberglass discharge sticks. Some kits feature telescopic designs that collapse down to a fraction of their working length. Other kits use short, threaded sections. You can screw these sections together to achieve the exact length needed. This modular approach keeps the operator at a safe distance while accommodating tight vault ceilings.
Key Evaluation Criteria for Portable Earth Equipment
Selecting reliable safety gear requires rigorous technical evaluation. You cannot rely on visual appearance alone. Engineering teams must scrutinize the electrical and mechanical limits of every component.
Fault current rating alignment is the most critical evaluation metric. You must match the kit’s short-circuit capacity with your network’s maximum prospective fault current. Manufacturers express this rating in kiloamps over a specific duration (e.g., 20 kA / 1s). If a substation generates a 25 kA fault, a 20 kA rated kit will violently disintegrate. Always calculate the worst-case scenario at the specific grounding location before specifying the cable gauge and clamp size.
Regulatory and testing compliance ensures the equipment will perform as promised. You must demand verifiable test certificates from your suppliers. Look for adherence to strict international frameworks like IEC 61230 or ASTM F855. These standards dictate brutal physical testing procedures. They guarantee the equipment can survive extreme thermal and mechanical forces without failing.
Material quality directly impacts corrosion resistance in damp settings. You must assess the metallurgical makeup of the clamps and ferrules. Different materials behave differently when exposed to subterranean moisture.
Table: Comparison of Clamp Materials for Underground Environments
Material Type
Conductivity
Corrosion Resistance
Best Application Scenario
Aluminum Alloy
Good
Moderate (requires anti-oxidant paste)
Lightweight applications, dry vaults
Tinned Copper
Excellent
Very High
Highly damp trenches, high fault environments
Bronze
High
Excellent
Permanent subterranean connection points
Weight versus durability requires a practical balance. Heavy-duty copper components naturally weigh more. However, heavy kits are cumbersome. Workers are more likely to drop them or apply them improperly in tight spaces. You must balance the necessary electrical mass with ergonomic reality. Lighter, high-grade alloys sometimes offer a safer operational compromise for daily use.
Implementation Risks and Deployment Realities
Even the best portable earth equipment fails if deployed incorrectly. Human error and harsh environments constantly degrade the safety margin.
The risk of mismatched connections remains a leading cause of accident injuries. Using an improper clamp profile leads to weak contact pressure. This creates high joint resistance. During a fault, magnetic forces will literally whip the cable, causing the loose clamp to blow off the busbar. You can mitigate this risk by standardizing your connection points. Installing permanent ball studs across your network eliminates guesswork. Crews simply snap a matching ball-stud clamp onto the point every time.
Mechanical wear in trenches quietly destroys cable integrity. Dragging cables across concrete floors or metal grating causes micro-abrasions in the insulation. Once the jacket breaches, moisture rushes in. The fine copper strands quickly oxidize, losing their current-carrying capacity.
To prevent catastrophic failure from hidden wear, crews must follow strict pre-use visual inspection protocols:
Clean the transparent cable jacket with a dry cloth to ensure clear visibility.
Inspect the entire length for black spots, which indicate internal copper oxidation.
Check the junction where the cable enters the clamp ferrule for frayed or broken strands.
Examine the clamp jaws for arc pitting, dirt, or mechanical deformation.
Verify the functional integrity of the fiberglass operating pole, looking for deep scratches or cracks.
Storage and handling practices drastically affect equipment lifespan. Equipment stored loosely in the back of damp utility vehicles degrades incredibly fast. Ambient moisture and road vibrations take a heavy toll. Emphasize the absolute need for protective, impact-resistant carrying cases. When not in active rotation, store these critical safety tools in a climate-controlled, dry environment.
Shortlisting the Right Kit for Your Operations
Procuring grounding tools is a highly specific process. You must navigate varying infrastructure designs and supplier capabilities to find the right fit.
Deciding between standard and custom configurations depends on your network complexity. Off-the-shelf kits work well for standardized overhead lines. However, underground switchgear varies wildly between manufacturers. Buying custom configurations allows you to specify exact cable lengths. Excessive cable slack is dangerous in a vault. It creates a larger magnetic loop during a fault, causing the cable to whip violently. Custom lengths minimize this slack, keeping the work zone secure.
You should actively look for specific supplier trust indicators. Reputable manufacturers provide transparent, third-party type-testing data. They offer clear derating curves showing how temperature and mechanical wear affect performance. Furthermore, they implement comprehensive serializing. Each clamp, cable, and pole should feature a permanent serial number. This enables accurate asset tracking and simplifies annual testing compliance.
Your next steps require practical field research. Conduct a thorough audit of your underground network. Document the maximum prospective fault levels at various substations and vaults. Catalog the exact types of connection points currently installed on your switchgear. Once you gather this data, request technical datasheets from shortlisted suppliers to ensure an exact match.
Conclusion
Selecting reliable grounding tools is a precise engineering decision, never a basic commodity purchase. The extreme conditions of underground vaults demand equipment built specifically for high humidity and confined spaces. Proper fault current rating alignment, verified material quality, and regular mechanical inspections form the foundation of crew safety.
You must align all equipment specifications directly with actual site conditions and international compliance standards. Relying on mismatched clamps or degraded cables invites catastrophic failure during a short-circuit event.
We strongly recommend auditing your current grounding inventory immediately. Remove any degraded cables from circulation. Consult with an electrical engineering specialist to configure appropriate, custom-length kits that perfectly match your underground network parameters.
FAQ
Q: Can overhead portable earth equipment be used for underground systems?
A: Generally no. Overhead kits often use long, single-piece hot sticks and clamp profiles unsuited for the confined spaces and specific switchgear found in underground networks.
Q: How often should earthing equipment kits be tested?
A: Beyond mandatory pre-use visual inspections, formal mechanical and electrical resistance testing should occur annually, or immediately following any short-circuit event.
Q: What is the significance of transparent cable sheathing?
A: It allows operators to visually verify that the internal copper strands have not fractured or oxidized, which would invisibly reduce the cable's fault current carrying capacity.
