Flipping a substation breaker to de-energize a massive transmission line never guarantees the conductors are immediately safe to touch. A dangerous operational gap exists between simply cutting the power and establishing a genuinely secure work zone for human contact. Permanent earthing systems handle the grid's baseline electrical grounding needs day in and day out. However, active transmission line maintenance demands dynamic, highly localized protection. Utility workers need a physical, fail-safe shield against accidental re-energization and invisible, deadly induced voltages.
Selecting the appropriate temporary grounding gear goes far beyond fulfilling a basic compliance checklist. It serves as the absolute foundational requirement for achieving zero-harm operational metrics and protecting vital infrastructure integrity. In this guide, you will learn the core engineering principles, critical component specifications, and authoritative safety standards driving these life-saving equipment decisions.
Core Function: Portable earth equipment creates a localized equipotential zone, protecting utility workers from induced currents, back-feeds, and accidental switching errors.
Critical Specifications: Equipment must be matched to the specific fault current rating (kA) and fault duration (seconds) of the network segment.
System Synergy: High-voltage line kits and transformer substation earthing kits operate on the same principles but require different clamp profiles and lead lengths.
Compliance is Mandatory: Procurement decisions must strictly align with international standards (e.g., IEC 61230, ASTM F855) and local utility regulations.
Working on high-voltage infrastructure introduces extreme physical risks. Even correctly isolated lines carry lethal potential. Operators rely on portable earth equipment to manage these unpredictable electrical hazards.
Grids are complex, interconnected networks. Human error always remains a statistical possibility during routine maintenance. An operator might mistakenly close the wrong circuit breaker. Automated SCADA systems sometimes experience software glitches, sending unexpected closure signals. If a line becomes re-energized while crews work on it, the results are catastrophic. Temporary grounding clamps act as a deliberate short circuit. If accidental power returns, the energy flows instantly into the earth. This trips upstream protection relays, shutting off the power again before it can harm the crew.
De-energized lines rarely exist in total isolation. They often run parallel to fully active, energized circuits. These live neighboring lines generate massive electromagnetic fields. Through inductive and capacitive coupling, they transfer invisible energy to the dead line. A technician touching a de-energized, ungrounded wire could still receive a lethal shock from this induced voltage. Temporary grounding cables bleed this continuous "phantom" energy safely into the ground, neutralizing the hazard completely.
Electricity always seeks the path of least resistance. The human body offers relatively low resistance compared to air, but much higher resistance than heavy copper cables. Equipotential bonding forces the worker and the immediate work area to share the exact same electrical potential. If you bond the overhead conductor, the tower structure, and the worker's position together, no voltage difference exists. Without a voltage difference, current cannot flow through the worker. High-quality earthing leads force massive fault currents to bypass human bodies entirely.
While the underlying physics remains identical across the grid, the physical environments dictate very different hardware designs. You cannot simply interchange equipment between overhead structures and enclosed ground facilities.
The point of physical connection determines the system's reliability during a fault. Overhead transmission lines utilize cylindrical aluminum or steel-reinforced conductors. Crews typically apply snap-on or heavy-duty screw-on clamps designed specifically to grip round cables securely, even in high winds.
Substation environments present different challenges. Here, operators encounter rigid, flat copper or aluminum busbars. Therefore, transformer substation earthing kits require specialized clamp jaw geometries. These jaws must open wider and clamp flat against rectangular surfaces to maximize the electrical contact area. Using a round-profile clamp on a flat busbar creates high electrical resistance, risking a catastrophic meltdown during a fault.

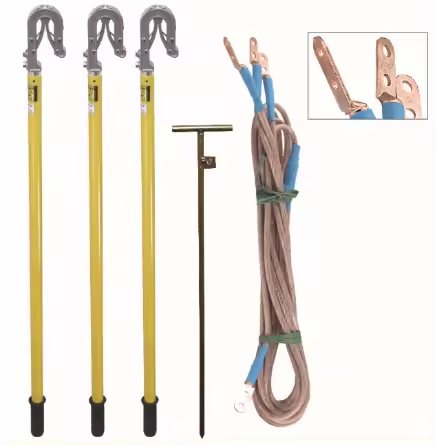

The cables themselves perform the heaviest lifting. Manufacturers balance extreme conductivity against field flexibility. High-purity copper provides superior current carrying capacity, while aluminum offers a lighter alternative for exceptionally long runs. Standard practice mandates clear, transparent outer jacketing. This transparency allows operators to visually inspect the internal braided strands before every single deployment. If internal copper strands break or oxidize, the cable's capacity drops drastically.
Applying heavy copper cables to conductors several meters overhead requires specialized tools. Operating poles, commonly known as hot sticks, provide the necessary mechanical reach and electrical insulation. Manufacturers typically construct these poles from extruded fiberglass. Engineers must carefully balance the weight-to-rigidity ratio. If a pole flexes too much, operators cannot apply sufficient torque to tighten the screw clamps. Weak connections lead to deadly arcing during a fault scenario.
Table 1: Equipment Profile Comparison
Component Category | Transmission Line Application | Substation Application |
|---|---|---|
Clamp Geometry | V-shaped or grooved jaws for round conductors. | Flat, wide-opening jaws for rectangular busbars. |
Lead Length | Generally longer (often 10m+) to reach the ground from high towers. | Shorter (usually 3m - 5m) due to proximity to earth grids. |
Operating Poles | Telescopic or multi-section poles, focusing on maximum vertical reach. | Shorter, single-piece rigid sticks focusing on tight-space maneuverability. |
Environmental Focus | High wind resistance and UV durability. | Resistance to indoor localized heat and chemical exposure. |
Procuring temporary earthing systems requires precise mathematical alignment with your specific grid parameters. Guesswork in this phase invites disaster.
Every node on an electrical grid has a theoretical maximum fault current. You must match your equipment's rating to this specific limit. Engineers express this rating in kilo-amps (kA) over a specific duration, usually seconds. For example, a rating of 40kA/1s means the cable assembly can survive a 40,000-amp surge for one full second without melting or breaking apart. Buyers must guide their procurement teams to analyze the highest potential fault current for the intended work zone before specifying cable thickness.
Safety engineers constantly battle the "Portable Paradox." Higher fault currents require thicker, heavier copper leads. However, an operator must lift this heavy cable assembly on the end of a long fiberglass pole. Heavy equipment causes immense operator fatigue, leading to poor clamp connections. To mitigate this paradox, utilities often deploy parallel lighter leads. Instead of one massive, unmanageable 120-square-millimeter cable, operators might apply two parallel 50-square-millimeter cables. This strategy divides the fault current safely while keeping individual components light enough for ergonomic handling.
Field equipment suffers severe abuse. Technicians drag cables across rocky terrain, expose them to direct sunlight, and subject them to extreme temperature fluctuations. Ultraviolet (UV) degradation can quickly destroy inferior cable sheathing, turning it brittle. You must evaluate the mechanical wear resistance of the clear jacketing. High-quality silicone or robust PVC blends remain flexible in sub-zero temperatures and resist tearing during rough field handling.
Because temporary grounding serves as the final barrier between life and death, international engineering bodies heavily regulate its design and testing. You cannot rely on uncertified equipment.
The global gold standard is IEC 61230 (Live working – Portable equipment for earthing or earthing and short-circuiting). This standard dictates strict physical and electrical parameters. In North America, IEEE standards and ASTM F855 provide similar rigid frameworks. These documents define exact requirements for clamp torque, cable flexibility, and thermal limits during short circuits.
Procurement teams must clearly understand the difference between testing phases.
Type Testing: Independent laboratories perform destructive tests on a prototype design. They subject the equipment to simulated maximum fault conditions to verify mechanical integrity and electrical limits. Buyers must demand documented Type Test certificates before approving a supplier.
Routine Testing: Manufacturers perform these non-destructive checks on every single unit rolling off the assembly line. They verify continuity, clamp operation, and visual defects.
International baselines provide a foundation, but local transport or utility authorities often enforce stricter rules. Regional utility boards frequently publish localized adaptations or mandatory approval lists. These local codes sometimes supersede generic standards, requiring specific clamp colors, bespoke lead lengths, or specialized testing frequencies. Always cross-reference generic specifications against your specific regional grid code.
Even the most perfectly specified equipment becomes hazardous if operators maintain or apply it incorrectly. Field realities demand strict procedural discipline.
Field realities prove harsh. A heavy toolkit dropped on a cable can sever internal copper strands without breaking the outer jacket. A broken internal strand severely reduces the fault current capacity. During a short circuit, this damaged section acts as a fuse, melting instantly. This turns a vital safety device into a localized explosive hazard. This reality emphasizes the absolute necessity of transparent sheathing, allowing daily visual inspections.
The physical sequence of applying the equipment is non-negotiable. Reversing the steps invites lethal consequences. Operators must strictly follow this numbered sequence:
Clean the application points thoroughly using approved wire brushes to remove oxidation.
Connect the earth clamp securely to the verified ground structure first.
Using an approved, tested hot stick, elevate the phase clamp.
Securely fasten the phase clamp to the de-energized conductor.
When removing the equipment, operators must reverse this order entirely. They must always detach the phase conductor first, leaving the earth connection as the absolute final step.
Temporary earthing kits possess a finite operational lifespan. You cannot simply place them in a truck and forget about them. Systematic periodic inspections ensure ongoing reliability. Utilities should implement rigorous resistance testing using micro-ohm meters every 6 to 12 months. This test pushes a precise current through the assembly to measure resistance across the clamps and cable. If the resistance climbs above manufacturer thresholds, it indicates internal corrosion or broken strands. Utilities must enforce strict retirement criteria, actively destroying compromised kits so they never re-enter the field.
Temporary earthing acts as a highly engineered fail-safe, far removed from being a generic commodity. It forms the ultimate physical barrier against human error, system failures, and lethal electromagnetic induction. Proper equipotential bonding guarantees forces bypass the human body, steering catastrophic energy safely into the earth.
Decision-makers must prioritize certified fault ratings, exact application fit, and operator ergonomics over initial unit cost. Attempting to force overhead line clamps onto flat substation busbars compromises safety and violates compliance standards. Proper component matching ensures structural integrity during extreme thermal and magnetic stress.
We strongly encourage procurement teams and site managers to audit their current network fault levels immediately. Consult directly with technical manufacturers to specify bespoke lead lengths, appropriate clamp profiles, and manageable weight limits for your next procurement cycle. Upgrading your localized grounding procedures ultimately safeguards your workforce and your critical infrastructure.
A: Generally no. While the flexible leads may be rated identically for current, the clamps usually need swapping to accommodate different conductor shapes. Transmission lines use round cables requiring grooved jaws, whereas substations feature flat busbars requiring wide, flat-faced clamps for proper electrical contact.
A: Visual inspections must occur before every single use. Formal mechanical and electrical continuity testing, utilizing a calibrated micro-ohm meter, should typically occur every 6 to 12 months. You must strictly adhere to the manufacturer's operational manual and your local regulatory codes.
A: If a fault occurs, undersized leads will melt, vaporize, or violently whip apart due to immense electromagnetic forces. This failure immediately destroys the equipotential zone, exposing workers directly to lethal voltages and potentially causing severe burn injuries.
