Transformer substation maintenance operates in a high-stakes environment. Safety teams rely heavily on strict electrical isolation procedures every day. However, these routines face constant threats from human error and unexpected energization. Fixed grounding grids primarily protect the physical infrastructure. They direct massive fault currents safely away from sensitive transformers and switchgear. Yet, this permanent infrastructure leaves a crucial gap. Temporary grounding remains absolutely necessary to protect the personnel working directly on isolated equipment.

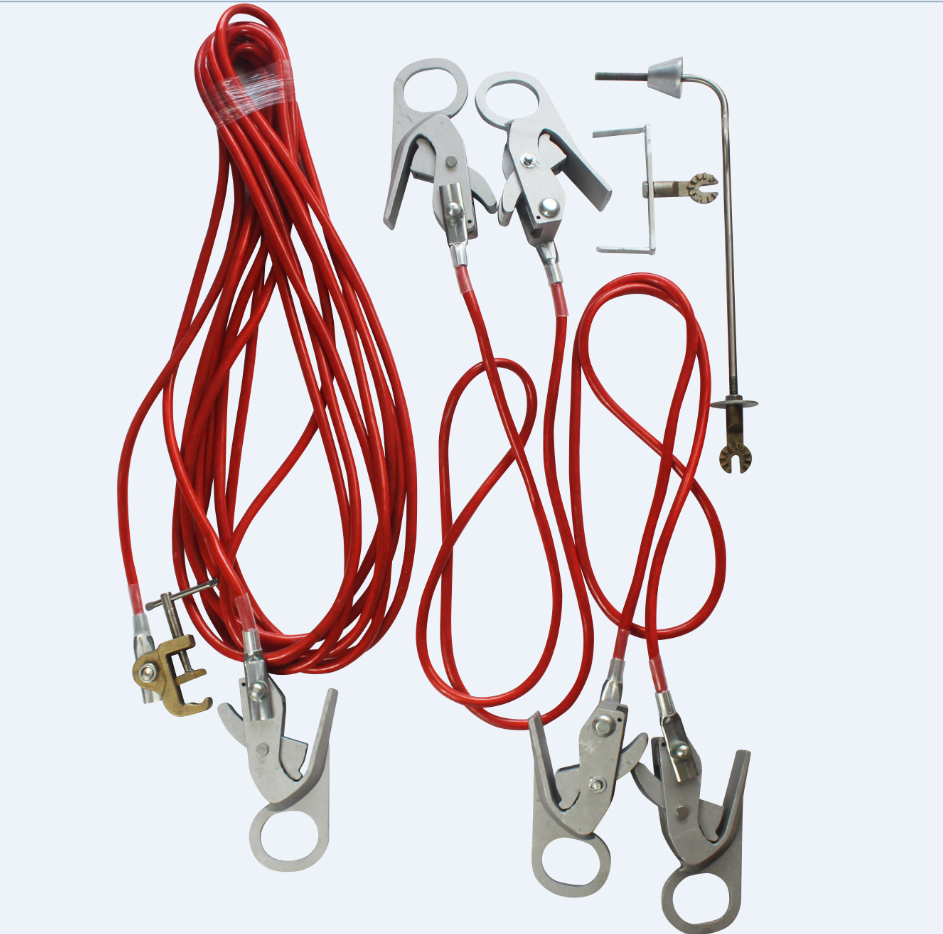

Without robust temporary grounding, technicians face severe, life-threatening hazards. This article provides a clear technical framework for your facility. You will learn how to properly evaluate and select high-reliability earthing kits. We will explore rigorous compliance standards, critical material specifications, and smart deployment strategies. Our goal is to help you mitigate operational risks immediately. You can then ensure every single maintenance task remains fundamentally safe.
Failsafe Redundancy: Temporary earthing kits provide a critical secondary path to ground, mitigating step and touch potentials during maintenance.
Specification is Contextual: Selecting the right portable earth equipment requires matching short-circuit current ratings to specific substation fault levels, not just buying off-the-shelf.
Standards Over Claims: Reliable equipment must demonstrate verifiable compliance with IEEE 1048 or IEC 61230 standards.
Maintenance Matters: The safety lifespan of earthing gear depends heavily on rigorous mechanical inspection and electrical testing protocols.
Many operators assume existing substation grounding grids offer complete protection. This assumption creates a dangerous false sense of security. Permanent grids handle massive systemic faults excellently. However, they cannot eliminate localized induced voltages. They also fail to protect workers against accidental re-energization events. These events often stem from simple switching errors in the control room. Furthermore, unpredictable environmental factors like lightning strikes can suddenly energize isolated lines.
When you isolate a circuit, adjacent live lines can still induce lethal voltages into the dead line. This happens through electromagnetic coupling. A permanent grid sits far below the actual work area. It does nothing to equalize the voltage difference across the worker's body at the equipment level.
This is exactly where temporary equipotential zones become crucial. Portable kits create an active equipotential zone directly at the physical work site. By bonding all conductive parts together and connecting them to ground, you eliminate voltage differences. If an accidental energization occurs, the current flows through the low-resistance grounding cables instead of the worker.
The cost of failure in this scenario is catastrophic. Inadequate temporary grounding leads directly to fatal touch potentials. It also significantly increases arc flash risks. If a lightweight cable melts during a fault, the resulting arc explosion can destroy equipment and cause severe injuries. Therefore, safety managers must treat temporary earthing systems as primary life-support equipment.
Always establish the equipotential zone precisely where the technician will stand or touch the equipment.
Keep grounding cables as short as possible to minimize electrical resistance and dangerous whipping effects during a fault.
Ensure all connection points remain clean and free of heavy oxidation before applying clamps.
Selecting reliable grounding gear requires analyzing specific technical features. You must understand exactly how each feature dictates a safety outcome. Procurement teams often look at generic specifications. Instead, they should map every feature directly to field performance.
Feature-to-Outcome Evaluation Framework
Technical Feature | Safety Outcome |
|---|---|
Short-Circuit Current Rating (SCCR) | Ensures the cable and clamps will not melt or detach dynamically during a maximum fault current event. |
Clamp Ergonomics and Bite | Guarantees secure mechanical connection to busbars or conductors despite oxidation or debris. |
Cable Flexibility and Insulation | Reduces operator fatigue during installation in tight substation spaces while maintaining physical integrity. |
The Short-Circuit Current Rating (SCCR) dictates the maximum fault current the assembly can handle for a specified duration. If you underestimate this rating, the magnetic forces generated during a fault will violently tear the clamps off the busbar. Alternatively, the thermal energy will vaporize the copper core.
Material specifications matter deeply here. High-strand-count copper provides the necessary current-carrying capacity while retaining flexibility. Stiff cables exhaust workers. They also place undue mechanical stress on the connection points. You should always specify UV-resistant, cold-weather-rated transparent sheathing. Transparent insulation allows technicians to conduct a visual inspection of the copper strands. They can easily spot internal strand breakage before it degrades the cable's current rating.
Clamp design requires equal scrutiny. The clamps must bite cleanly through surface oxidation. A strong spring or screw mechanism ensures the clamp maintains constant pressure. This steady pressure prevents high-resistance hot spots from forming during a fault event.
You cannot use a universal approach when deploying grounding systems. Different environments demand completely different equipment configurations. Substation maintenance and overhead line work present unique physical and electrical challenges.
Substation-specific kits focus heavily on confined space maneuverability. Substations feature complex, tightly packed busbar arrangements. Technicians must connect cables to ground mats or dedicated grounding pedestals. Therefore, substation kits utilize specific busbar clamp configurations. You will frequently see ball stud clamps, flat bar clamps, and specialized duckbill designs. These clamps secure firmly to rigid structures without requiring excessive clearance.
Conversely, field teams require specialized transmission earthing harnesses for overhead line maintenance. Overhead applications demand entirely different specifications. Linemen must handle tower bonding and phase-to-phase bridging. These tasks require much longer cable runs to span the distance between aerial phases. Because linemen deploy this gear at significant heights, the equipment must prioritize lighter weight without sacrificing the fault current rating.
Identify the Work Environment: Is the team working in an enclosed switchyard or on aerial towers?
Determine Connection Types: Do you need to grip flat copper busbars, or do you need to grasp round aluminum overhead conductors?
Calculate Span Distances: Substation cables typically stay under 5 meters. Transmission lines often require 10-meter spans or longer.
Assess Deployment Methods: Will technicians apply the gear using shotgun sticks from the ground, or will they install it manually from a bucket truck?
By defining the use case clearly, procurement teams avoid costly mismatches. You ensure workers have the precise tools required for their specific operational environment and voltage class.
Even the highest-rated grounding gear degrades over time. Hidden risks frequently compromise the equipment long before it reaches its scheduled replacement date. Mechanical degradation poses the greatest threat to your safety inventory.
Technicians often drop heavy clamps onto concrete pads. They might accidentally run over cables with service vehicles. Furthermore, repeatedly bending the cables tightly near the ferrule causes micro-fractures in the copper strands. Over time, these small fractures accumulate. They silently reduce the actual fault current capacity far below the manufacturer's rated capacity. A cable rated for 25kA might only handle 10kA after a year of physical abuse.
Another major risk involves the "check-box" compliance trap. Procurement departments sometimes prioritize cost savings and purchase non-certified imports. These products might claim high ratings, but they lack verifiable testing. You must demand certified type-testing reports from recognized bodies. Equipment must show clear compliance with IEC 61230 or IEEE 1048 standards. Without these independent lab reports, you gamble with human lives.
Reversing the connection sequence: Workers must always connect the ground clamp first, then connect the phase clamp. When removing the kit, they must remove the phase clamp first, then the ground.
Coiling excess cable: Leaving grounding cables coiled during deployment creates an induction coil effect. This generates massive violent magnetic forces during a fault.
Ignoring dirt and oxidation: Connecting a clamp to a dirty busbar drastically increases electrical resistance, potentially causing the connection to fail dynamically.
Successful rollout requires continuous education. Field teams must undergo strict training on connection sequencing. They must understand the physics behind why these procedures matter. Safety culture determines the true lifespan and effectiveness of the equipment.
Procuring reliable safety gear requires a structured, logical approach. You cannot simply reorder the same part numbers year after year. Substation loads change, and fault current potentials evolve as the grid expands.
Step 1: System Fault Level Auditing
Before opening a catalog, you must calculate the exact electrical parameters of your site. Determine the maximum potential fault current and the maximum fault duration (clearing time) at the specific substation. Your grounding gear must exceed these specific parameters. Never guess these numbers; consult your facility's latest engineering studies.
Step 2: Component Customization
Once you know your fault rating, customize your components. Select the appropriate clamp types based on your existing substation hardware. Evaluate whether C-clamps, duckbill clamps, or snap-on styles fit your busbars best. Look closely at the jaws. Serrated jaws work better for cutting through tough oxidation on older equipment.
Step 3: Vendor Vetting
Treat your vendor as a safety partner, not just a supplier. Require verifiable, independent laboratory test data for every configuration you purchase. Look for vendors who understand engineering standards deeply. The best manufacturers also offer post-sale inspection and refurbishment services. They help you maintain your inventory's integrity over time.
Your immediate next-step action should involve a comprehensive site audit. Send your safety team to inspect the physical connection points across your substations. Often, facilities benefit immensely from retrofitting ball studs onto critical equipment. Standardizing connection points simplifies the grounding process. It reduces confusion and speeds up deployment. Once you standardize your connection points, you can issue a precise, highly targeted tender for new kits.
Transformer substation earthing kits represent a critical line of defense for maintenance teams. They are not commodity hardware items. They are life-saving deployment systems designed to manage extreme electrical violence. By understanding the severe limitations of fixed grounding grids, you can better appreciate the necessity of temporary equipotential zones.
Investing in rigorously tested gear dramatically reduces liability. It guarantees compliance with strict safety frameworks like IEC 61230. You must ensure your teams use properly rated equipment tailored to their specific environment, whether inside a tight switchyard or up on transmission towers. Regular mechanical inspections and strict adherence to connection sequences dictate the true effectiveness of these tools.
We urge all safety managers and procurement officers to take immediate action. Review your current temporary grounding inventory today. Cross-reference your existing cable ratings against your facility's latest fault current studies. Discard any degraded or uncertified equipment. Upgrading your grounding systems is the most direct way to protect your personnel from unpredictable electrical hazards.
A: Technicians must perform visual inspections before every single use. They should check for frayed strands under the clear sheathing, loose ferrules, and damaged clamp threads. Additionally, safety departments must conduct formal micro-ohm resistance testing annually. This electrical test detects internal corrosion and broken strands that visual inspections might miss.
A: The sizing of the grounding cable depends entirely on the fault current magnitude and the system's clearing time, not the operating voltage. Therefore, a kit can work across different voltages if the fault current rating is sufficient. However, the insulation rating for the fiberglass handling sticks remains strictly voltage-dependent.
A: Working grounds (bracket grounding) are placed on both sides of a work area to trip the circuit breaker during accidental energization. Personal grounds (equipotential zone grounding) are placed directly at the work location. They bond the worker, the equipment, and the structure together to eliminate fatal voltage differences across the worker's body.
