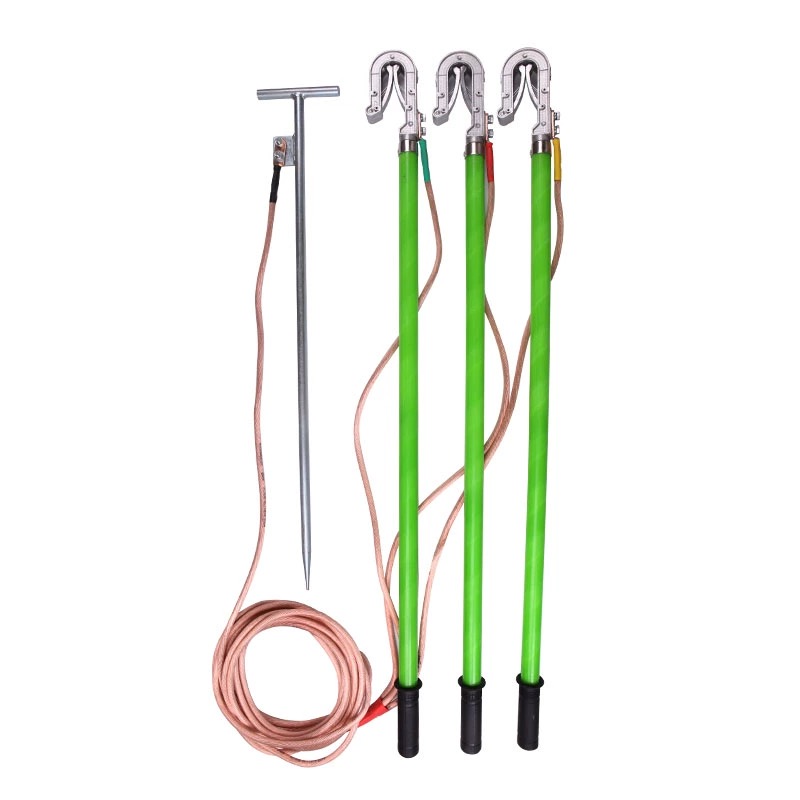

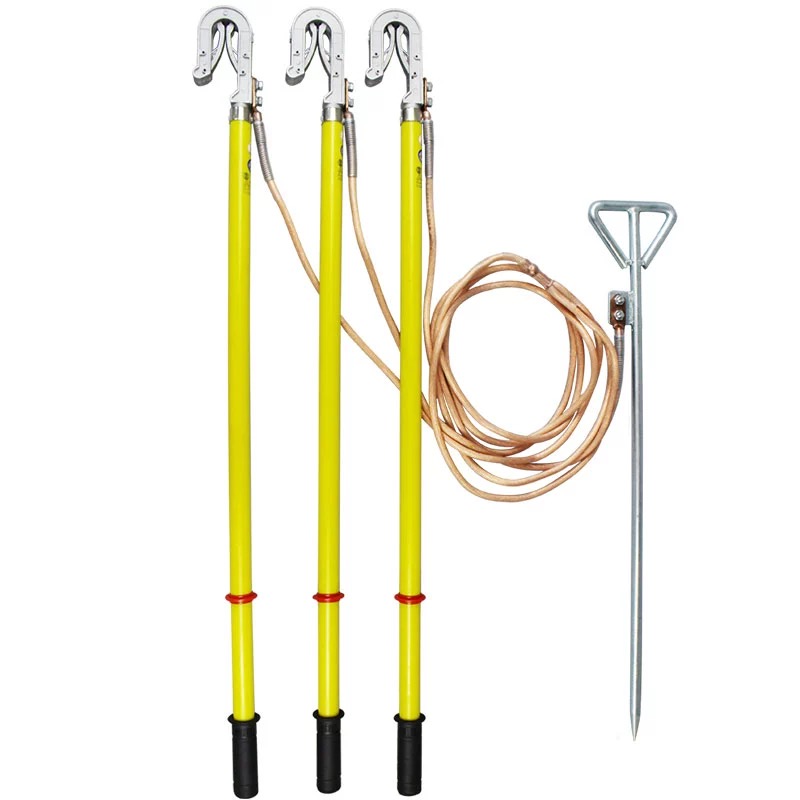

Protection earthing operations serve as the absolute last line of defense for personnel during electrical maintenance tasks. Equipment failure during an accidental re-energization is simply fatal. When selecting the right portable earth equipment, you must look beyond basic regulatory compliance. True safety requires balancing massive fault current capacity against practical, everyday usability for your field teams. Heavy cables slow down work, while undersized cables melt under stress. This comprehensive guide provides a technical and operational framework for evaluating temporary earthing components. You will learn how to specify exactly what your site needs. We will show you how to avoid over-specifying, which creates severe ergonomic hazards for operators. We also detail how to avoid under-specifying, which introduces extreme fatal risks. Ultimately, you will gain the operational knowledge needed to keep maintenance crews entirely secure in high-stakes environments.
Selection must begin with calculating the maximum prospective short-circuit current and required fault duration for the specific installation.
A high-quality earthing wire set balances material conductivity (usually flexible copper) with a practical weight limit for safe handling.
Compliance with global standards (specifically IEC 61230) serves as the baseline for evaluating any portable earthing solution.
Long-term safety relies on verifiable inspection features, such as transparent cable sheathing, and routine micro-ohm resistance testing.
Electrical safety begins by understanding your specific operational baseline. Many professionals confuse permanent system grounding and temporary protection earthing. Permanent grounding protects electrical systems continuously. It directs everyday leakage currents safely into the ground. Temporary operations demand entirely different equipment. Temporary gear must handle sudden, massive fault currents safely. At the same time, it must remain highly mobile for field crews.
Your selection process always starts by defining short-circuit current calculations. You must determine the maximum fault current your specific network can produce. Engineers usually measure this in kiloamps (kA). You must also define the clearance time. Network protection relays dictate this duration. Common clearance times range from 0.5 seconds to 1 second. You cannot specify safety equipment safely without these two exact numbers.
Next, you must analyze your application environment. Your deployment location directly dictates your equipment specifications. Overhead lines require wide phase-spacing capabilities and extra cable length. Indoor switchgear demands highly compact clamps. Substations often require heavy-duty attachments designed for flat busbars. If you ignore the physical environment, your teams will struggle during installation.
How do you measure success? A successfully specified equipment assembly meets three strict criteria. First, it safely carries the full fault current to earth without melting. Second, it remains securely clamped despite extreme electro-dynamic whipping forces. Third, it remains light enough for a single operator to install safely. Achieving all three requires careful planning.
Table 1: Application Environments and Specification Needs
Application Environment | Phase-Spacing Needs | Typical Clamp Configuration | Primary Operational Challenge |
|---|---|---|---|
Overhead Lines | Wide (Requires longer cables) | Snap-on or spring-loaded clamps | Lifting heavy cables via operating poles |
Indoor Switchgear | Narrow (Requires shorter cables) | Compact screw-type clamps | Navigating tight, restricted enclosures |
Substations | Variable | Heavy-duty flat or ball-stud clamps | Matching clamps to diverse conductor shapes |
Manufacturers construct the safest cables using highly flexible, multi-stranded copper. Copper provides exceptional conductivity. Multi-stranded designs ensure the cable bends easily during transport and installation. You must calculate the minimum required size based on standard engineering formulas. Organizations rely on IEC sizing charts to match conductor cross-sections to prospective fault currents.
However, practical experience reveals a significant hidden risk. You must avoid the danger of over-sizing your cables. Engineering teams sometimes default to the largest available cable for perceived safety. This approach backfires in the field. Extremely thick cables become incredibly heavy. They turn structurally rigid. This rigidity increases operator fatigue drastically. When technicians struggle under the weight, they risk dropping the assembly. An oversized, rigid earthing wire set can even pull clamps off overhead lines simply through gravitational drag. You must balance adequate conductivity against safe handling weights.
Your assembly requires two distinct clamp types. Phase clamps attach to the energized line end. Earth clamps connect directly to the grounding grid. You cannot interchange these components safely. Each serves a highly specific mechanical purpose.
You must evaluate clamp compatibility against your target conductors meticulously. Flat busbars require jaws designed to grip flat surfaces firmly. Round overhead lines require grooved or snap-on profiles. Some modern substations utilize fixed ball studs, demanding specialized ball-stud clamps. If you mismatch jaw profiles to conductors, you severely compromise the electrical connection.
We must emphasize the critical necessity of self-locking or secure tightening mechanisms. A short-circuit event unleashes violent electro-dynamic forces. The cables will whip and thrash uncontrollably. Weak clamps will blow completely off the conductors. Robust tightening mechanisms guarantee the clamps remain attached during these catastrophic fault events.
Protective sheathing wraps around the copper strands. You should strictly evaluate and mandate the use of clear or translucent protective sheathing. Opaque black or colored jackets hide severe internal damage. Translucent jackets provide total visibility.
Transparent jackets establish trust through verification. Field technicians can visually inspect the copper strands prior to every single operation. They can instantly spot green oxidation. They can identify broken copper strands near the ferrule crimp. This visual inspection serves as a critical, non-negotiable step for on-site safety. If a worker cannot see the copper, they cannot guarantee the cable will perform.
You cannot compromise on industry standards when protecting human lives. We position IEC 61230 as the absolute, non-negotiable benchmark globally. Equivalent regional standards, like specific ASTM guidelines, also apply. These standards dictate precise performance metrics for portable equipment used for earthing and short-circuiting. If a product lacks this certification, you must reject it immediately.
Furthermore, theoretical math is not enough. You must request tangible type testing evidence from manufacturers. Ask them to prove their equipment survived physical, simulated short-circuit dynamic tests. Theoretical conductivity calculations look great on paper. However, only destructive physical testing proves the clamps can withstand actual electro-dynamic whipping forces without shattering.
Finally, ensure total system compatibility. You must purchase equipment tested as a unified system. This includes the clamps, cables, and ferrules. Some procurement teams piece together unverified third-party components to save money. They attach brand A clamps to brand B cables. This introduces untested weak points. A unified, fully certified system guarantees reliable performance during a fault.
Analyzing budget-tier equipment often reveals significant operational risks. Cheap assemblies fail early. Manufacturers cut costs by using inferior insulation materials. In cold weather, this cheap insulation becomes brittle and cracks. Furthermore, budget options frequently feature weak ferrule crimping at the clamp junctions. These early failures lead to higher replacement costs over time. More importantly, they introduce unacceptable safety risks for your technicians.
You must treat ergonomics as a primary safety factor. Heavy equipment discourages correct usage. Workers taking physical shortcuts cause accidents. You should factor in the value of specialized lightweight materials. Aluminum alloy clamps provide excellent conductivity while drastically reducing weight. Lighter components reduce physical strain on operators working at heights or using long insulated poles. Improved ergonomics directly result in higher adoption rates and correct procedural usage.
Vendor support plays a crucial role in long-term risk management. You should evaluate vendors based on their overall operational capabilities. Seek out manufacturers who offer the following services:
The ability to produce custom cable lengths tailored to your specific substation dimensions.
Specific clamp configurations matched to your unique network conductors.
Complete traceability through unique serial numbers stamped on every component.
Transparent access to batch testing reports and material certificates.
Procuring excellent equipment solves only half the problem. Rollout lessons prove training remains equally critical. You must train field teams on correct application sequences rigorously. A reversed sequence invites disaster.
Standard Application Sequence:
Verify the circuit is entirely de-energized using approved voltage detectors.
Always connect the earth clamp securely to the verified ground point first.
Use an approved, insulated operating pole to lift and apply the phase clamps.
Connect the phase clamps to the target conductors securely.
Visually verify all locking mechanisms are fully engaged.
Removal follows the exact reverse order. Always remove the phase clamps first, leaving the earth connection for last.
You must also establish a framework for ongoing testing and maintenance. Visual inspections alone cannot detect internal resistance changes. We strongly advise referencing standard testing protocols for routine verification. Micro-ohmmeter testing provides the best diagnostic data. You should measure the resistance of the cables and clamp junctions annually. A sudden spike in resistance indicates internal strand breakage or severe clamp oxidation.
Finally, you must confront storage realities. Poor storage destroys portable earth equipment rapidly. UV exposure from direct sunlight degrades the clear insulation. Moisture ingress causes severe copper oxidation. Improper coiling habits snap the fine internal copper strands over time. You must outline strict requirements for storage. Mandate the use of heavy-duty, protective storage bags. Ensure transport vehicles have dedicated, dry compartments for safety gear. Proper handling drastically extends the lifespan and reliability of your assemblies.
Selecting reliable temporary earthing components requires a disciplined, structured approach. You must build your decision framework carefully. First, calculate your exact prospective fault current. Next, select the appropriate wire size to handle that thermal stress safely. Then, match your clamp jaw profiles perfectly to your physical environment. Always verify strict IEC 61230 compliance. Finally, plan a rigorous lifecycle testing routine.
We advise decision-makers to audit their current inventory immediately. Compare your existing safety gear against the specified short-circuit ratings of your modernized electrical networks. Network upgrades often increase fault capacities, rendering old earthing cables dangerously obsolete.
As your next step, recommend consulting directly with an electrical safety engineer. Finalize your technical specifications and application requirements thoroughly before issuing any procurement orders. This diligence guarantees your crews remain protected against catastrophic re-energization events.
A: Permanent system grounding protects equipment and people continuously by providing a safe path for everyday leakage currents. Temporary protection earthing involves portable equipment installed strictly during maintenance. It intentionally shorts the circuit to earth, guaranteeing a tripped breaker if the system accidentally re-energizes while personnel are working.
A: There is no universal minimum size. The required cross-sectional area is strictly dictated by your system's calculated short-circuit current and the fault clearance duration. While IEC guidelines offer standard starting points, you must calculate the size based on your specific network protection relay settings to ensure safety.
A: Field technicians must perform daily visual inspections before every single use. Look for cracked insulation or frayed copper. Additionally, you should schedule instrumental testing, such as micro-ohmmeter resistance measurements, annually. You must also re-test or replace the equipment immediately after it experiences any known short-circuit fault event.
A: No. Mixing components introduces severe safety and compliance risks. Assembling untested, uncertified hybrid sets voids safety guarantees. A fault event creates extreme electro-dynamic forces. You must only use unified assemblies tested and certified together under IEC 61230 standards to ensure the connections will not violently fail.
