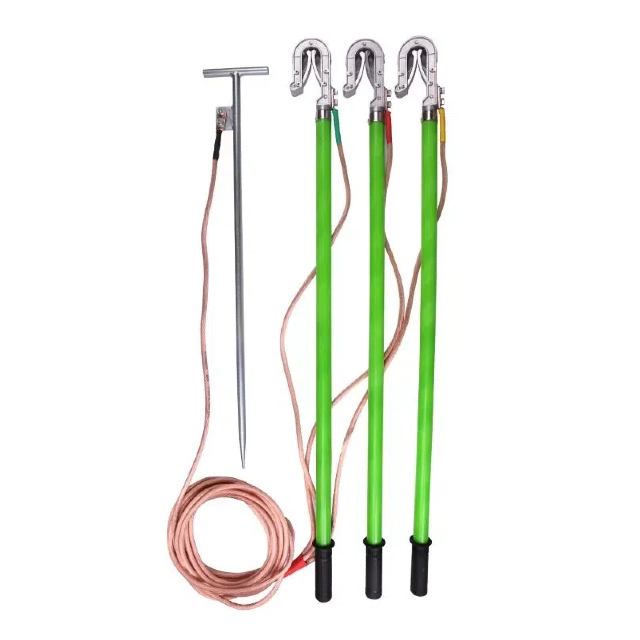

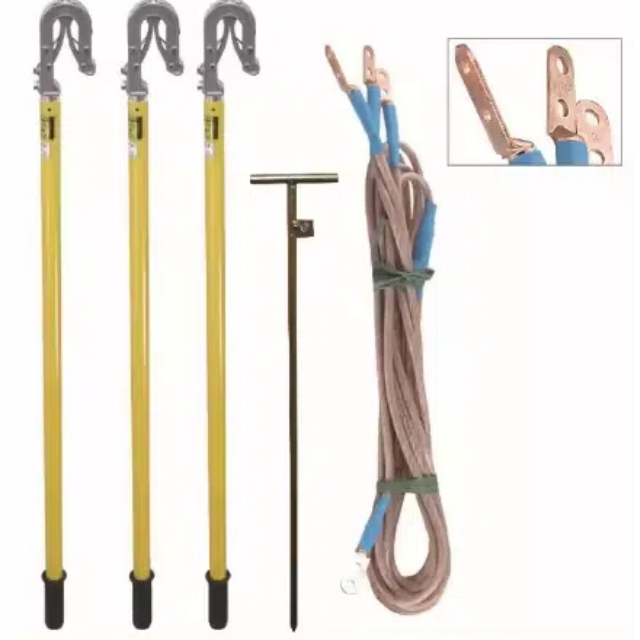

Proper handling of portable earthing kits is more than just a formality—it is a critical safety step that protects linemen, supervisors, and electrical crews from life-threatening accidents. At JITAI, we understand that reliable safety equipment must be combined with correct operational practices to deliver true protection. This guide outlines how to inspect, install, and test a portable earthing kit, along with maintenance and troubleshooting advice, so that crews can confidently perform work on energized or recently de-energized lines.
Before a portable earthing kit or earthing wire set is brought to a work site, a thorough inspection is necessary. Pre-use checks serve as the first line of defense against hidden defects that could compromise operator safety.
Every component should be examined for visible damage. Clamps must have no cracks or deformations that could weaken grip strength. Metal parts should be free from rust or corrosion, as this can increase resistance and reduce conductivity. The insulating rods should not show splintering, fractures, or discoloration. Even minor flaws can escalate into failures under fault current conditions.
The earthing cables themselves are vital. Look for frayed ends, crushed insulation, or stiffened sections that indicate heat or chemical damage. Crews should use a continuity tester or multimeter to confirm that the cable conducts electricity evenly from one end to the other. A cable with internal breaks, though it may appear intact, cannot provide the secure path needed for grounding.
Portable earthing kits must comply with specific ratings and standards. Always check the product’s certification labels and manufacturer traceability tags. Ensure the kit has passed dielectric and mechanical strength tests as required. Updated records prove the equipment is rated for the voltage levels in question and give supervisors confidence that liability risks are minimized.
After a successful inspection, the next priority is installing the portable earthing kit correctly. Following the proper workflow ensures that the equipment functions as designed.
No installation begins until the environment is secure. The work area should be assessed for wet surfaces, unstable footing, or nearby live conductors. All personnel must wear the appropriate PPE: insulating gloves, safety helmet, protective eyewear, and flame-resistant clothing. Proper footwear with insulating soles is also essential to reduce the chance of accidental current passage.
Grounding requires a reliable point of contact. The first step is connecting the earth clamp securely to the grounding electrode or substation earth bar. This connection ensures that any incoming energy has a safe path to the ground. Only after the earth connection is secure should workers connect the other clamps to the conductor being worked on. The sequence matters: earth first, line second. Reversing this order can expose the installer to severe danger.
All clamps should be applied with the help of insulating operating rods. These rods allow linemen to keep a safe clearance from the conductor while attaching or removing equipment. Correct working distance must always be respected, as even de-energized lines may carry residual or induced voltage. Operating rods should match the rated voltage of the network and should themselves be inspected prior to use.
Installing a portable earthing kit is only part of the process. Verification ensures that the setup is truly effective.
A supervisor should verify that all clamps are fully tightened and properly aligned. Loose clamps can arc under fault current, damaging the conductor and endangering personnel. Where possible, crews should perform a low-resistance test using a micro-ohmmeter to confirm the continuity of the installed system. A consistent, low resistance reading proves the grounding path is intact.
Every installed earthing kit must be recorded in site documentation. Logging provides a clear history for safety audits and legal compliance. Tagging the equipment with visible markers helps ensure all team members know which circuits are safely grounded. Without clear records, there is a risk of accidental removal or overlooked grounding points during multi-team operations.
Even after installation, circumstances may change. Following severe weather events like storms, or after any mechanical impact such as heavy vehicle movement, the earthing connections must be checked again. Vibrations, shifting ground, or falling debris can loosen clamps or damage conductors. Periodic re-checks should be part of every site’s operational routine.
Portable earthing kits are an investment in safety, and like all precision equipment, they require ongoing care.
After each use, clamps should be wiped clean of dust, grease, or moisture. Moving parts may need light lubrication to maintain smooth operation. Kits should always be stored in dedicated cases that protect them from direct sunlight, chemical fumes, or excessive humidity. Proper storage extends the life of the kit and prevents unnoticed deterioration.
Even when not in daily use, every earthing wire set should undergo regular re-testing at intervals recommended by the manufacturer or industry regulations. Tests confirm both dielectric integrity and mechanical strength. Records of each test should be logged and archived to satisfy regulatory bodies and internal safety audits.
No component lasts forever. If a cable shows cracks, discoloration, or reduced flexibility, it should be replaced. Damaged clamps or insulating rods should never be repaired with makeshift fixes. Instead, retire or professionally refurbish them as per manufacturer guidance. Continuing to use compromised equipment introduces unnecessary risks.
Even with the best equipment and preparation, issues can arise unexpectedly at the job site. Quick and clear procedures help crews respond safely.
If a clamp cannot make a firm connection, the work should not proceed. The team must stop and inspect both the clamp and the conductor. Sometimes the problem is contamination on the conductor surface—dirt, paint, or corrosion. If cleaning resolves it, the clamp may then be applied. If not, the equipment must be replaced. Never force a faulty clamp into place.
Should a cable be crushed, cut, or overheated during use, the immediate action is to isolate the work area. The damaged cable must be removed from service, and a spare should be installed before resuming work. Using tape or temporary fixes is unsafe and prohibited. Supervisors must record the incident and ensure the defective component is tagged for repair or disposal.
If an earthing kit fails during live work, isolation of the site is critical. The affected section should be evacuated, and the control room must be notified. Escalating the issue to senior safety officers ensures that corrective actions are taken and that lessons learned are applied to prevent recurrence.
Safety in electrical maintenance is built on discipline and preparation. Inspecting, installing, and testing portable earthing kits correctly gives crews the confidence to work in high-risk environments while minimizing accidents and liability. At JITAI, we provide high-quality grounding equipment that meets international standards, but we also emphasize that safe practices are just as important as reliable tools. Remember the four pillars of safe use: inspect, install, verify, and log. By following these steps, teams can perform their duties effectively and return home safely. For more information on our range of earthing equipment or to discuss your specific project requirements, contact us today.
